Combining Print Finishes: What Works Together, What Doesn't, and in What Order

Short answer: most finishes combine well. The ones that fail are fighting over the same surface. Print goes on first, then foil, then emboss or deboss, then the die cut, and edge paint last. Every one of those is a separate pass with its own registration, so never design a hairline fit between two finishes: leave 1 mm of air, or overlap by a set trap. When two finishes want different papers, stop forcing them onto one sheet and build the card in plies.

This guide assumes you know each finish on its own; if not, start with foil artwork preparation, letterpress file setup and emboss and deboss file setup. Here we cover what happens when you stack them: the order, the tolerances between passes, the house compatibility rules, and how to supply the file.

The order of operations

Finishes run in a fixed order: print, foil, emboss or deboss, die cut, edge paint. The order isn't a shop preference. Each step either needs a flat, uncut sheet to register to, or would damage the step before it if it ran later.

1. Print. CMYK by offset or digital, or letterpress, one plate per color. Ink goes down on a flat, open sheet and becomes the reference every later pass registers to. Any laminate goes on straight after print.
2. Foil. One pass per foil color, on bare stock, never on ink. The die needs a flat face to press against.
3. Emboss or deboss. The sheet is shaped after the foil is down; run it the other way and the flat foil die crushes the form. When foil and emboss must align exactly, they merge into one strike on a combination die.
4. Spot UV and raised UV. Coating passes on the printed or laminated surface, before anything is cut.
5. Die cut. After this there is no press sheet left to register to, so every registered finish must already be on.
6. Edge paint. Last, because the cut cards are stacked, clamped flat and square, and painted on the stacked edge.

Where the bond goes on a duplex or triplex card

In most builds, each ply is printed and finished on its own before bonding, then cut and edged as one card. That is why a multi-ply file needs one artboard per face and a spec line that says which finish belongs to which ply. A few constructions change the sequence, and we confirm yours at proof.

Every pass is a new registration: the tolerance stack-up

Each finish is positioned independently, and the tolerances between passes add up. A foil die, a letterpress plate and a cutting die each hold their own geometry perfectly. The movement happens between them: where the sheet sits against the guides on each run, how it stretches under heat and pressure, how a stack shifts under the blade.

Stack-up is what happens when two of those relationships meet on one element. Foil registers to the print at ±0.5 mm and the cut registers to the print at ±0.8 mm, so in the worst case the foil can sit 1.3 mm closer to one edge of the card than you drew it. Two separate passes of foil and emboss can each miss the print by 0.5 mm in opposite directions and miss each other by 1 mm. Most sheets land well inside that. Design for the worst case anyway: you will hold every card in the run, not the average one.

Design so the stack-up can't show

• No hairline fits between finishes. Don't nest foil 0.5 mm inside a printed frame, outline a deboss with a printed keyline, or ask spot UV to land exactly on the edge of a printed shape. Bold UV over a bold printed shape is fine; a UV outline chasing a printed outline is not.
• Separate or overlap, never butt. Where finishes of different kinds meet (foil and ink), separate them by 1 mm. Where two passes of the same kind touch (two foils, two letterpress colors), overlap them by a 0.3 mm trap on the shared edges.
• Keep parallel edges away from the trim. A foil border 1.5 mm from the edge will read 0.7 mm on one card and 2.3 mm on the next. Keep foil and critical art 3 mm inside trim, or bleed it 3 mm past.
• Put exact relationships inside one pass. Anything drawn on the same plate or die holds its geometry perfectly. If two elements must align to the tenth of a millimeter, they belong on the same plate, the same foil die, or one combination die.

The compatibility matrix

Most finish combinations fail for one of three reasons: the surface won't take the second finish, the second finish lands on the first, or a physical process (a clamp, a cut, a scanner) can't cope with the result. This table is our house rulebook.

The table reads more simply as a list of what each finish needs underneath it. If the surface is wrong, no amount of file prep saves the combination.

Foil and emboss in register: the combination die

If the foil has to sit exactly on the raised form, it has to be one die. Run foil and emboss as two passes and each lands at ±0.5 mm to print, so the emboss can shift off the foil by up to 1 mm. What you see is a crescent of flat foil on one side of the shape and a bare, un-foiled shoulder on the other. A combination die is a sculpted, heated die with a matching counter: the foil transfers and the paper takes its form in the same strike, so the foil edge and the emboss edge are one edge.

Duplex and triplex: the master key

When two finishes want different surfaces, or would fight through one sheet, give each its own ply. A duplex card is two sheets bonded into one, typically 32 pt (0.8 mm); a triplex is three, typically 48 pt. Because each ply is printed and finished as a separate sheet before bonding, finishes that would fight on a single sheet stop meeting at all. That is the reason most of our multi-finish work is built thick. The plies are the point; the thickness is a side effect (see business card thickness).

• Front deboss, back letterpress. On one sheet, a deep impression on either face telegraphs through to the other. Split across two plies, the glue line absorbs any bulge. For a deboss that must not show through, 32 pt duplex is our floor.
• Different stocks front and back. A black ply on the front for gold foil and a white cotton ply on the back for letterpress. Letterpress ink is translucent and needs the light sheet; foil is what reads on the dark one.
• A colored ply instead of a flood. Letterpress solids over 13 cm² (2 in²) mottle on cotton. Make the color field a dyed ply and let letterpress carry only the lines and type.
• A colored core as the edge. On a triplex card a colored middle ply shows as a stripe around the edge with no paint at all. Painting the edge covers the core, so choose one: a visible core or a painted edge.

How to supply a multi-finish fileAGENCY LEVEL

One file, one artboard per side, one layer per operation, and a written spec line. Every finish is a separate physical tool, and we make each tool from its own layer. If two operations share a layer, someone has to guess, and guessing is how finishes end up in the wrong place. The general rules are in print-ready files; these are the multi-finish specifics.

• One PDF, PDF/X-4 preferred (it keeps layers and spot channels).
• One artboard per side, FRONT and BACK. On a duplex card these are the outer faces of the front and back plies.
• One layer per operation, named after its swatch: ART for inks, then FOIL-GOLD, DEBOSS, SPOT-UV, CUT. Each foil color is its own swatch, layer, die and pass.
• Every finish layer is vector only, 100% of one reserved swatch, set to overprint. No tints, gradients or raster.
• Ink knocked out under every foil, with the 1 mm gap drawn in the ART layer. Traps built into the art: the second foil extends 0.3 mm under the first on the shared edge only.
• For foil and emboss in register: identical shapes on the FOIL and EMBOSS layers, and "combination die" in the spec line.
• Die line on the CUT swatch at 0.25 pt, 100% magenta preview, one closed path. Folds on CREASE, 100% cyan.
• Edge paint is not a layer: it goes in the spec line with a Pantone U reference. QR codes sit on the ART layer, in ink.

Then write the build down in one line: front, back, construction, edge. The spec line is how we check your layers against your intent.

Three builds, taken apart

Three common pieces, broken into layers and passes, each with the landmine that sinks it most often.

Build 1: a wedding invitation in letterpress, foil and painted edge

Front: letterpress PMS 7545 U + FOIL-GOLD; Back: letterpress PMS 7545 U; 32 pt duplex cotton; edge painted PMS 7545 U. A 5 × 7 in card (see invitation sizes) with letterpress text, a gold foil monogram and a painted edge that matches the ink.

The landmine: the flood. The request is usually a colored background with the names knocked out in white. Letterpress floods mottle on cotton, and white letterpress ink on cotton isn't something we offer. Make the colored field a dyed cotton ply, foil the names in white pigment foil or gold, and keep letterpress for the fine type it does best. Second landmine: a gold border drawn close to the painted edge. Foil stops 3 mm inside the trim on any card with a painted edge, and it never bleeds into it.

Build 2: a business card in foil and blind deboss on black and white duplex

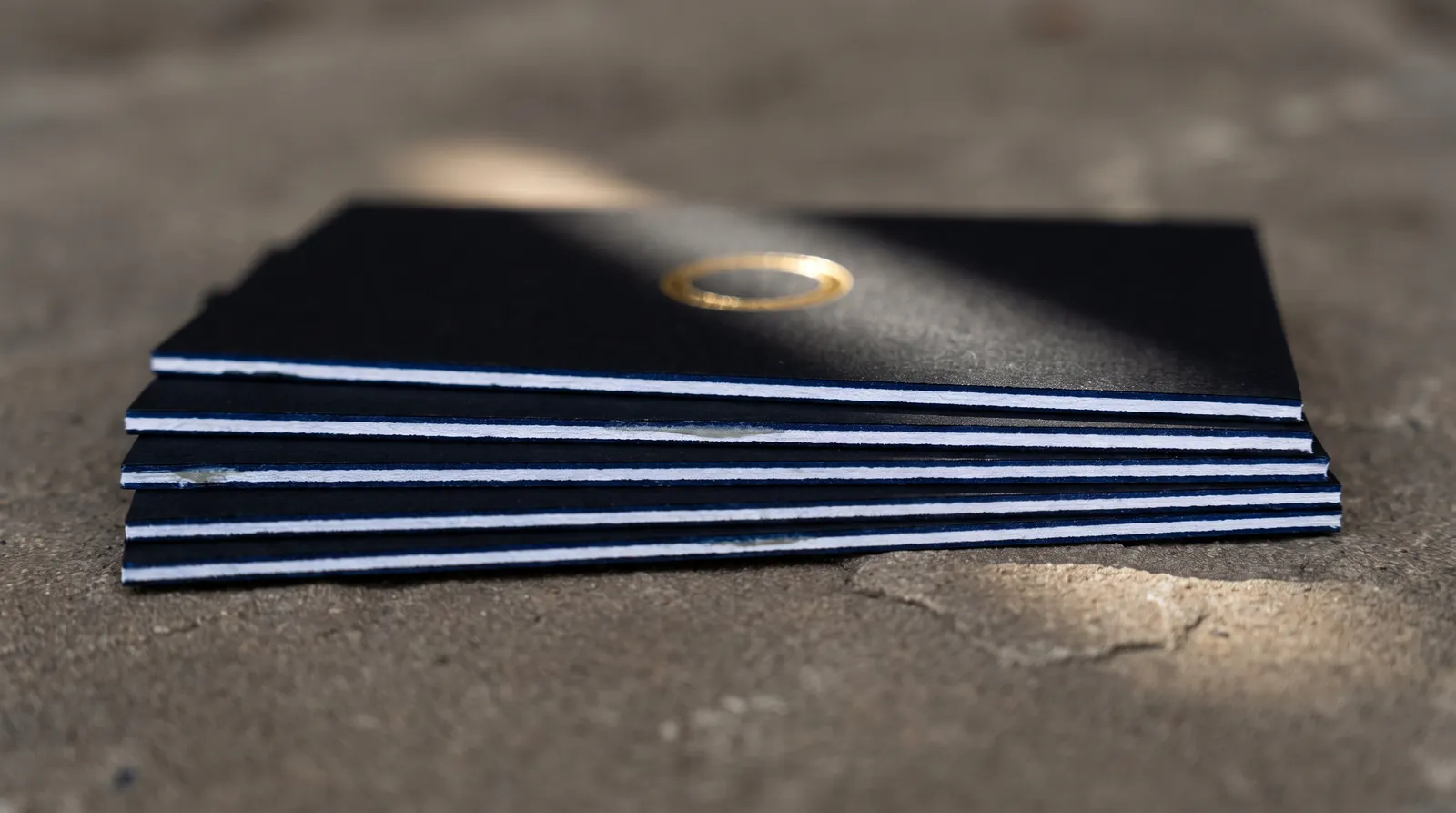

Front: FOIL-GOLD on black ply; Back: blind DEBOSS on white cotton ply; 32 pt duplex, black front ply and white back ply; edge painted. The front is a gold wordmark on black, the back a blind debossed monogram, and the edge shows the build.

The landmine: the deboss on the black side. A blind deboss reads by the shadow in the impression, and black uncoated stock barely shows a shadow. Put the blind deboss on the white ply and the gold on the black ply, and each finish gets the ground it needs. Two more to watch: a black or dark foil on the black face reads as sheen rather than contrast, so it can't carry the phone number; and if the card needs a QR code, it goes on the white back in ink, never in foil or deboss. The edge crosses a black ply and a white one, so choose the paint color with that in mind; a deep color reads as one continuous edge. On a very dark build we may recommend edge foil instead of paint; that is a case-by-case call we make at quote.

Build 3: a packaging sleeve in CMYK, spot UV and a die cut

Outside: CMYK + SPOT-UV on coated board; CUT and CREASE dieline. A printed sleeve for a box, with gloss UV picking out the logo and a shaped window.

The landmine: the late switch to uncoated board. Somebody wants a more natural, kraft-looking sleeve after the artwork is built, the board changes to uncoated, and the spot UV stops working, because UV soaks into open fiber instead of curing on top. If the board goes uncoated, the UV layer becomes foil or a blind deboss, and the file changes with it. Two quieter rules: keep UV off the glue flap, since adhesive needs bare board to grab, and keep it off the crease lines, where a hard coating cracks when the sleeve folds. Draw the UV layer clear of both and we set the exact hold-back at proof.

Preflight: the multi-finish checklist

• Every finish sits on a surface that can take it.
• No foil touches ink: knocked out, 1 mm gap. Touching foils trap 0.3 mm; separate foils sit 1 mm apart.
• Nothing depends on a fit tighter than the tolerance between its passes.
• Foil and emboss that must align share one combination die.
• Foil sits 3 mm inside trim or bleeds 3 mm past; it stops 3 mm short of a painted edge.
• Painted edges: square corners, straight cuts, 32 pt or thicker.
• Impressions on both faces: duplex, one per ply.
• QR codes and barcodes in ink.
• One layer per operation, one reserved swatch each, and a spec line that names them all.

If a combination isn't in the matrix, ask before you build the file; a build is cheaper to fix at the sketch stage. Order a sample pack to see duplex, foil, deboss and painted edges in the hand, or browse the paper library for the stocks each finish needs.
